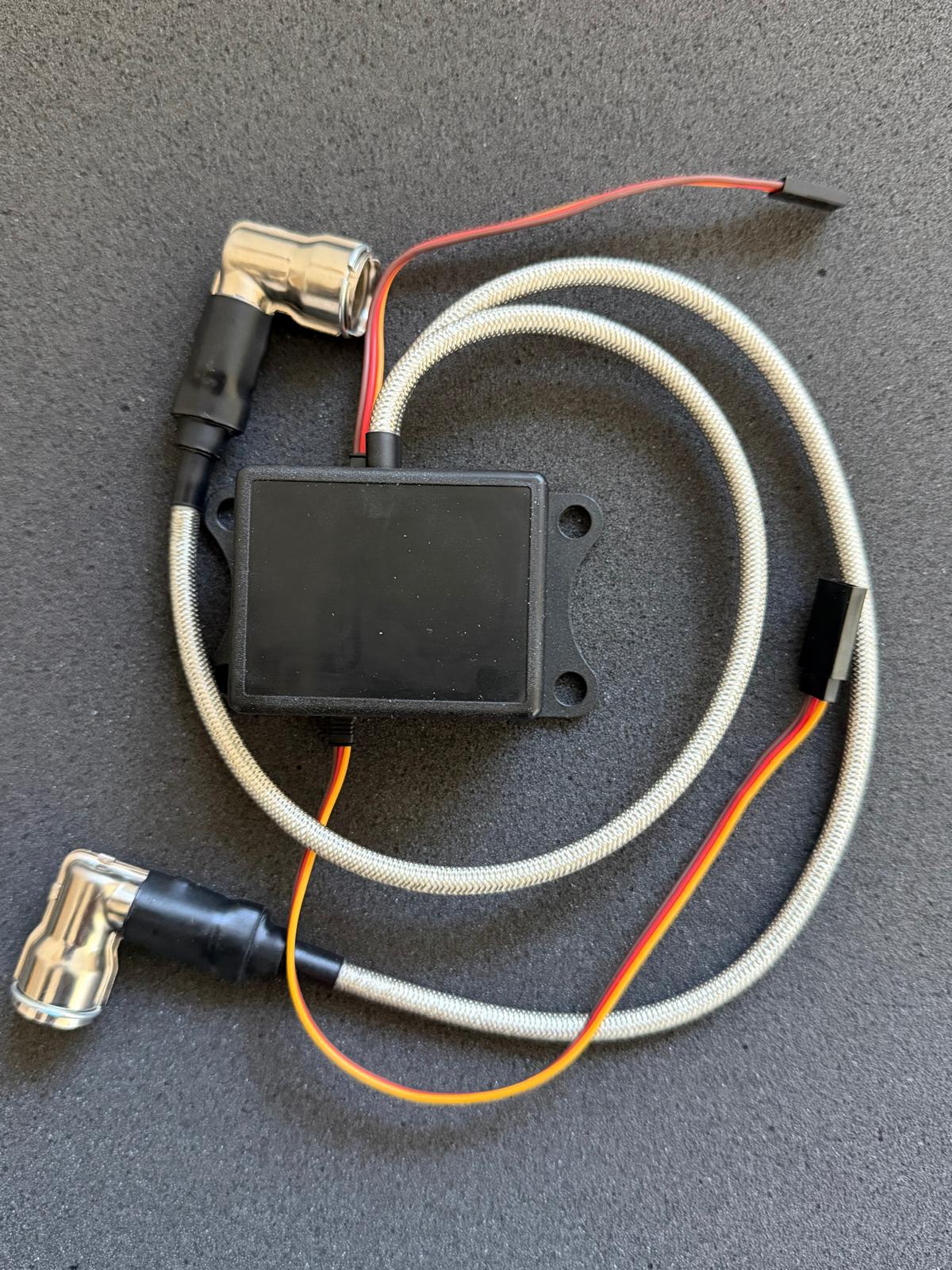

Processor controlled ignition
Each ZDZ engine is equipped with state of the art processor controlled ignition unit.
Technical parameters
| Technical data | Ignition | Min. | Typical | Max. | Units |
| Supply voltage | ZDZ single/twin | 3.8 | 4.8 - 6 | 6.7 V | V |
| Supply curent | ZDZ single | 13 (0) | 220 (2000) | 680 (8000) | mA (RPM) |
| Supply curent | ZDZ twin | 13 (0) | 300 (2000) | 1100 (8000) | mA (RPM) |
| Output voltage | ZDZ single/twin | 20 | 21 | 22 | kV |
| RPM | ZDZ single/twin | 800 - 9000 | 25000 | RPM | |
| Weight | ZDZ single | 130 | g | ||
| Weight | ZDZ twin | 190 | g | ||
| Temp. range | ZDZ single/twin | -10 | +25 | +85 | °C |
| Temp. range | Hall. sensor | -40 | +25 | +150 | °C |
