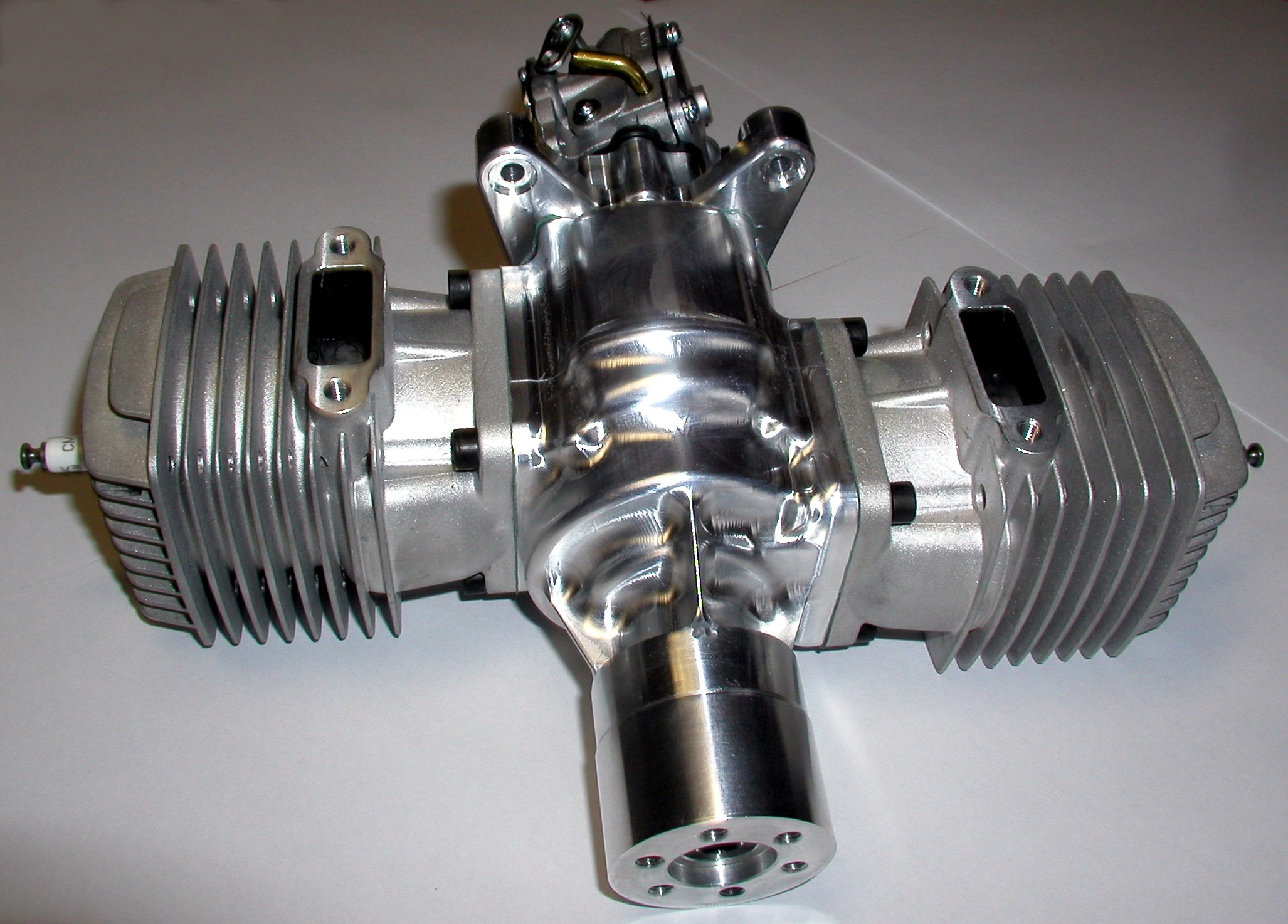

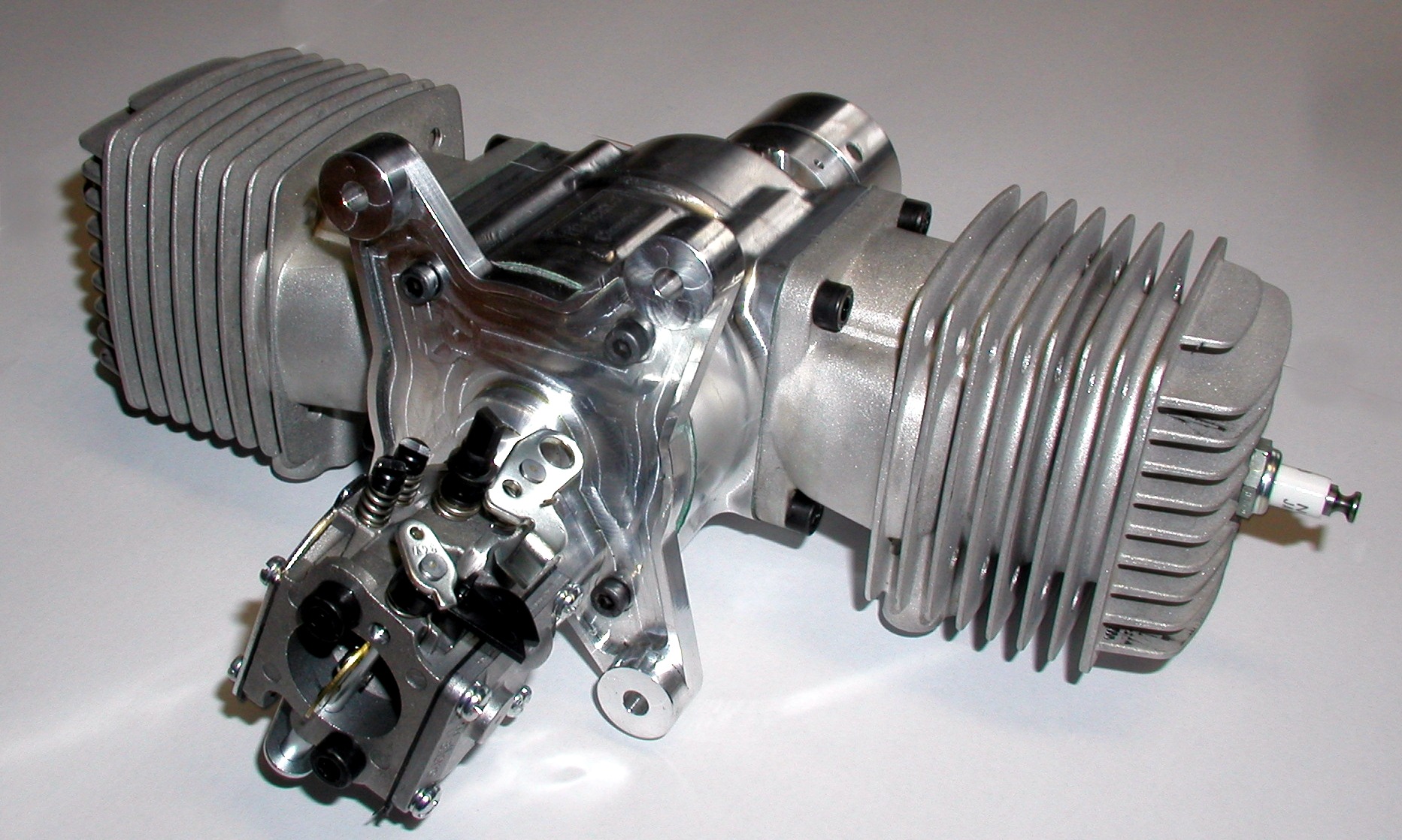

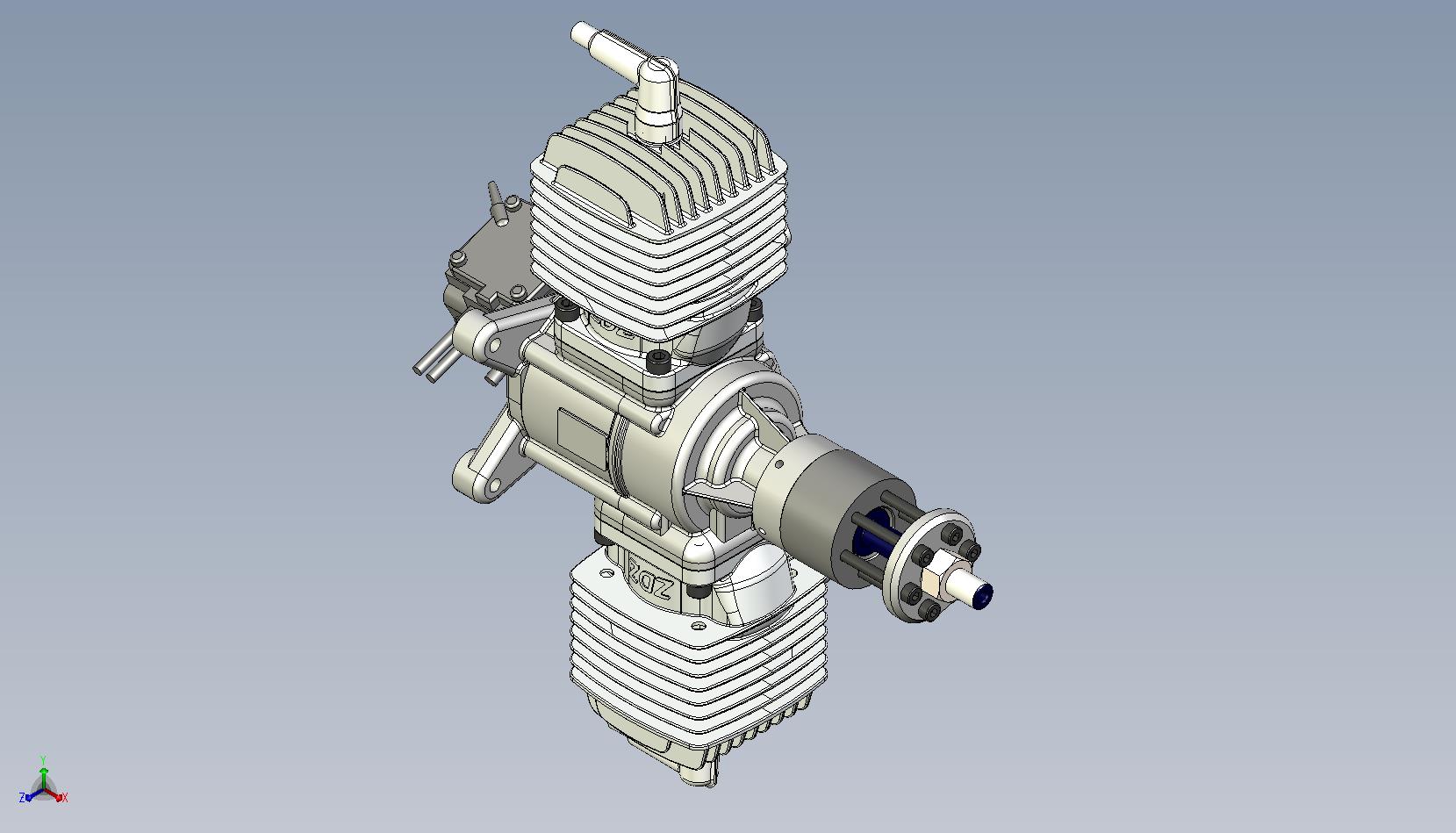

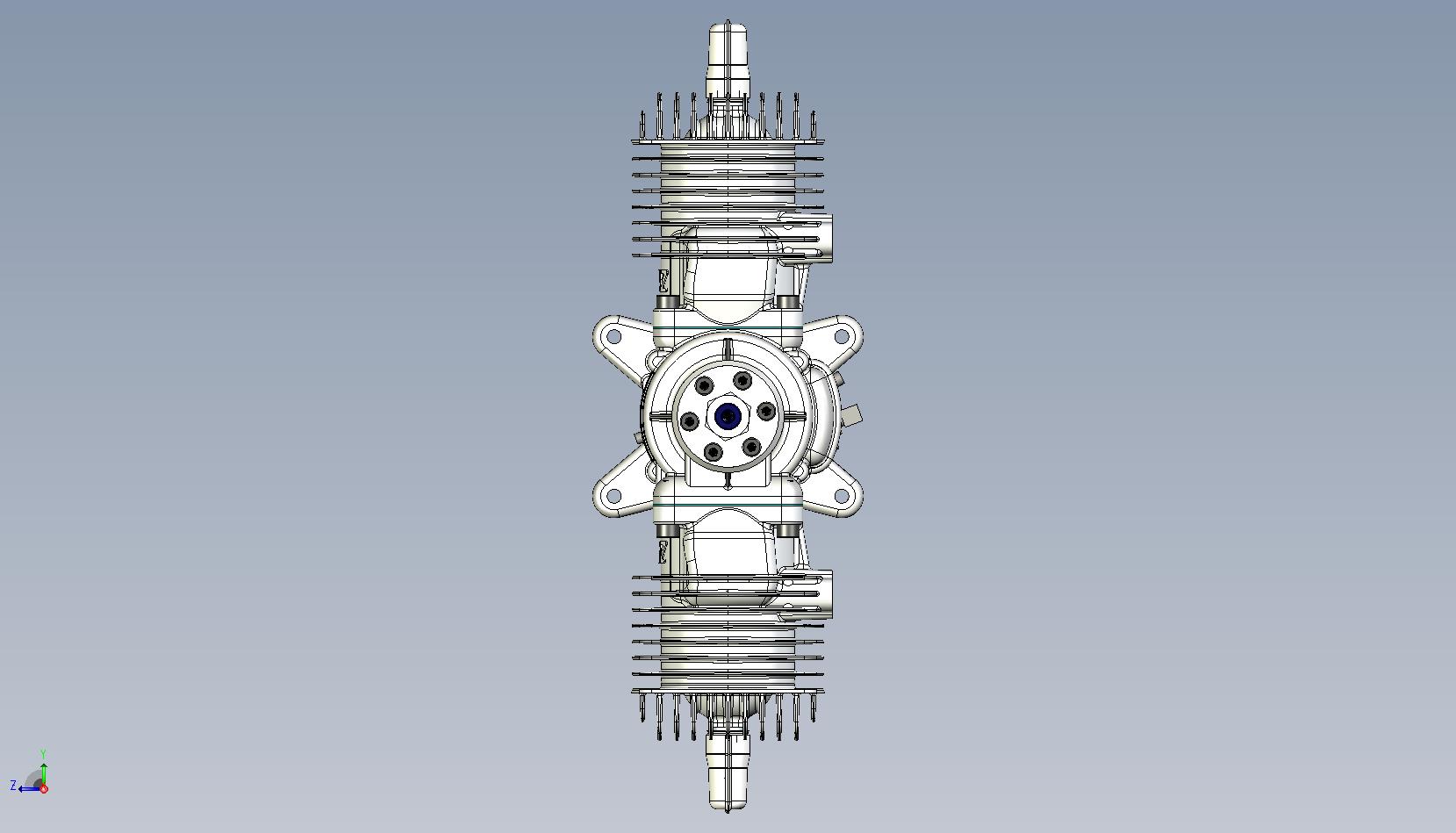

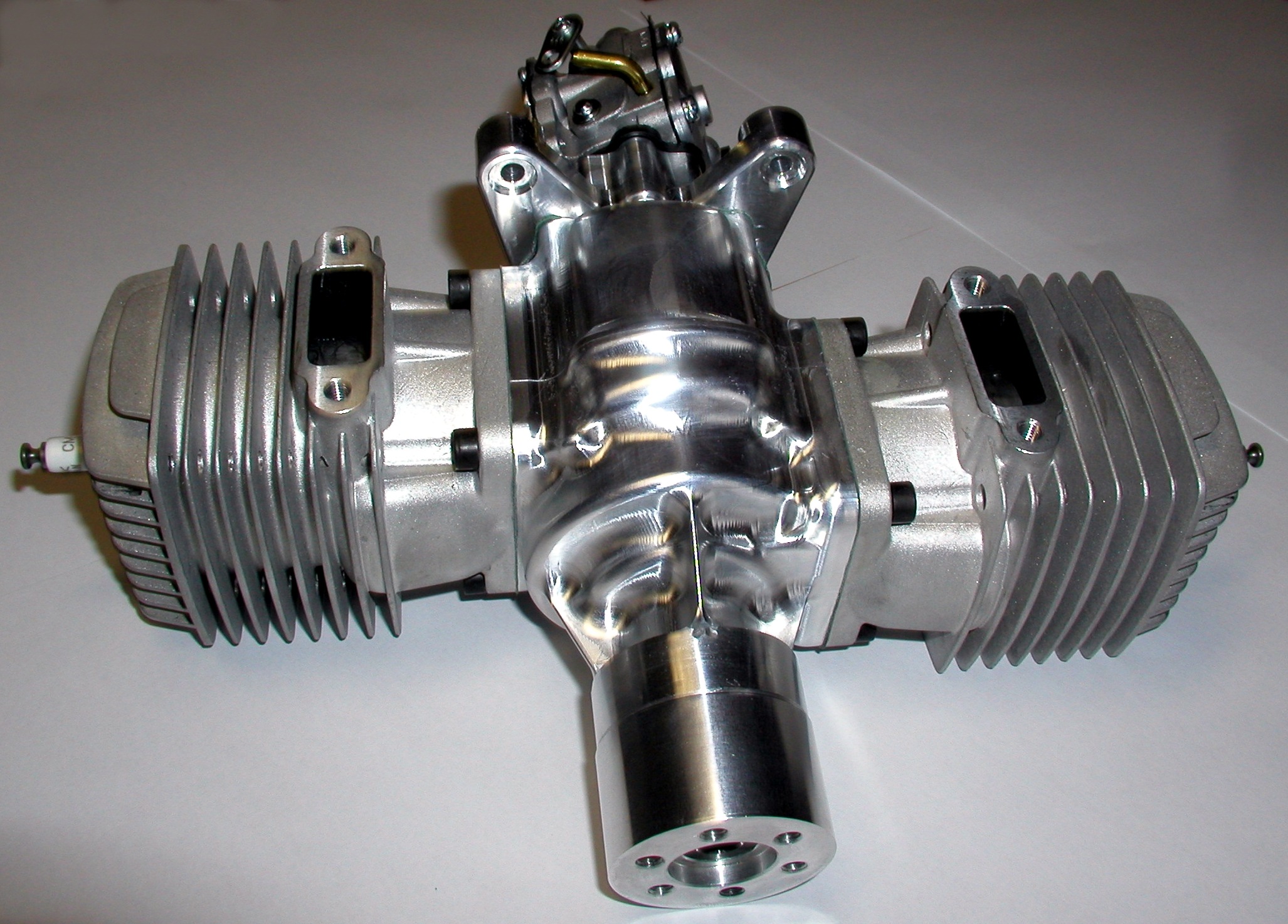

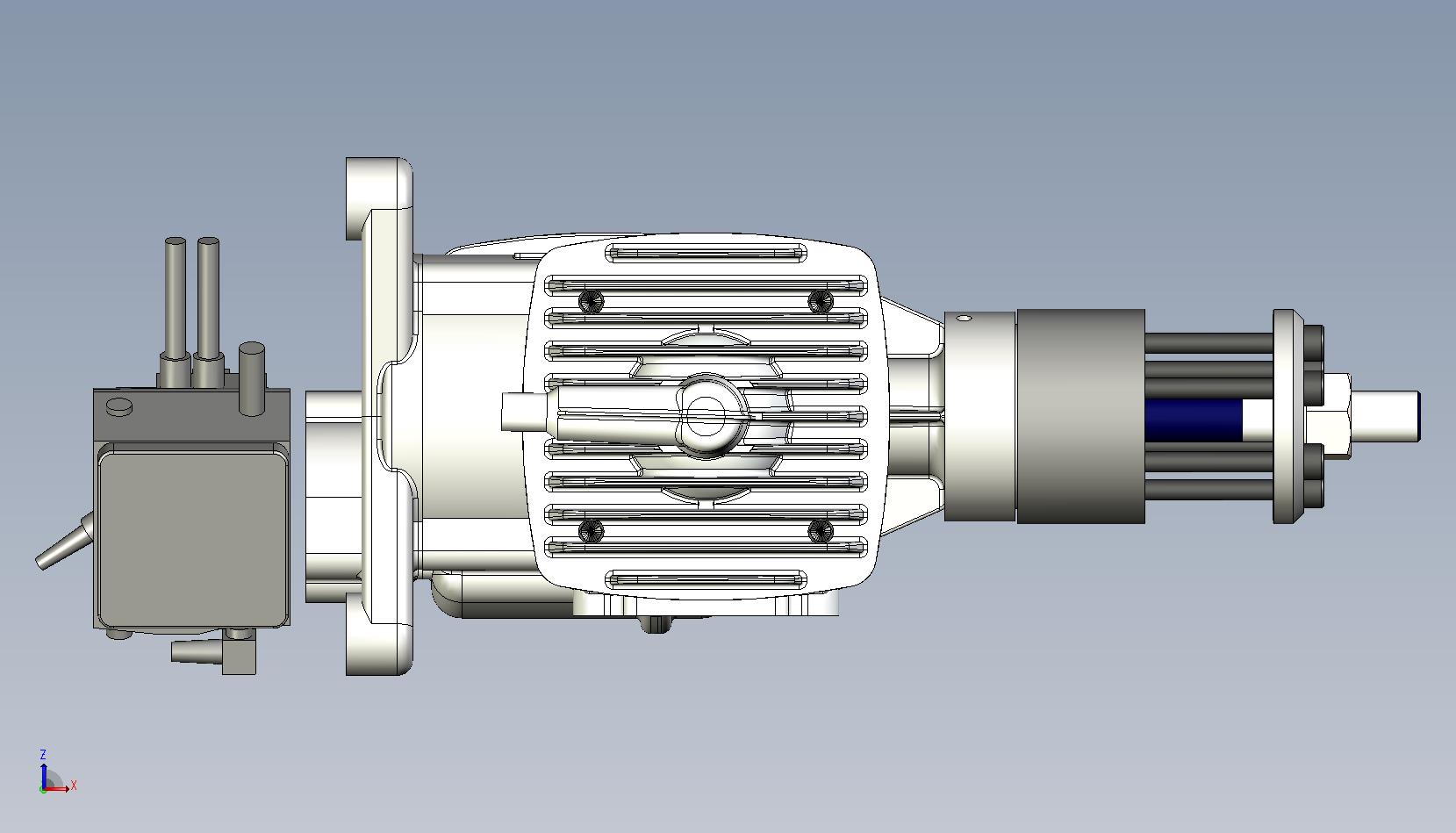

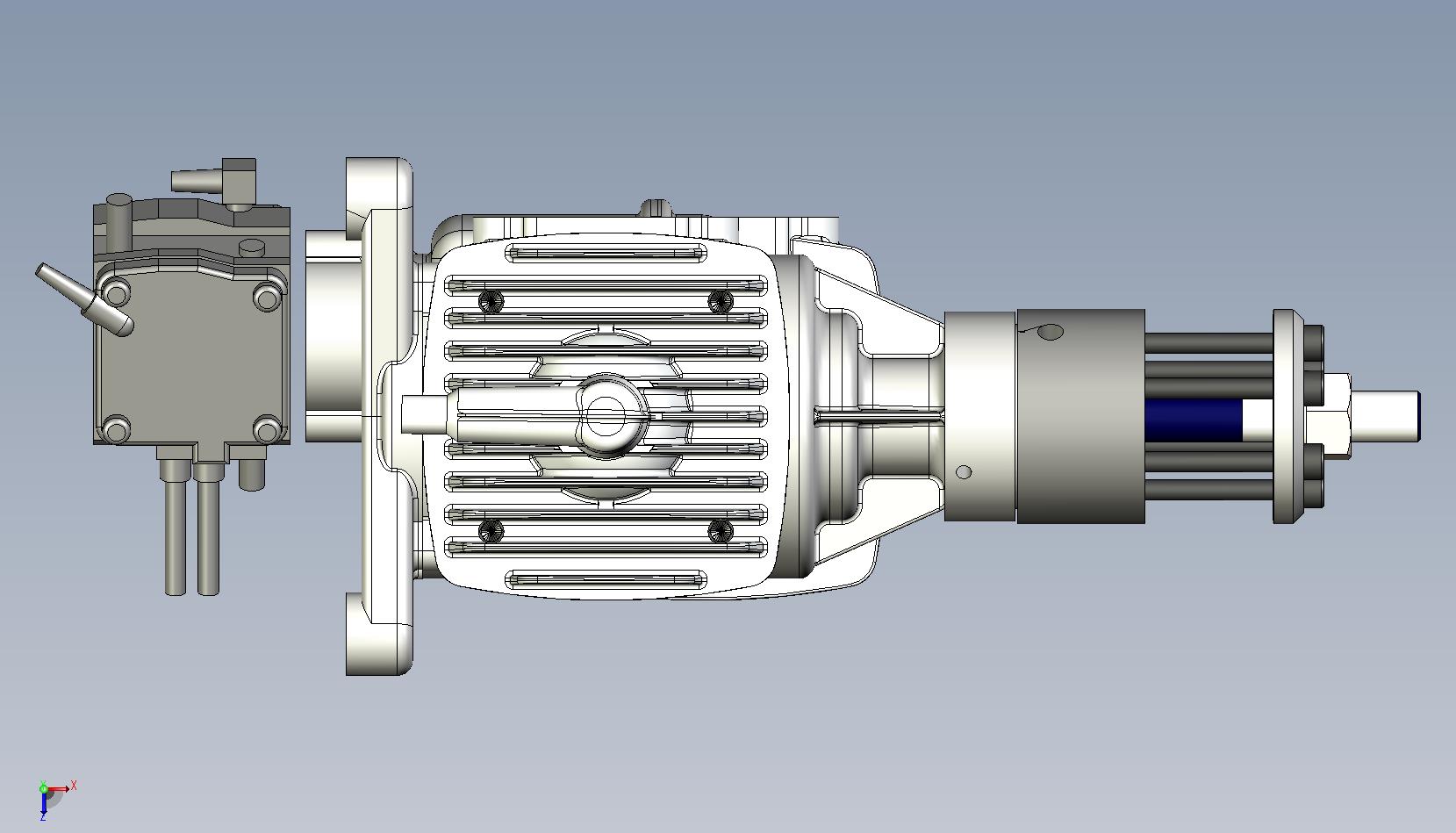

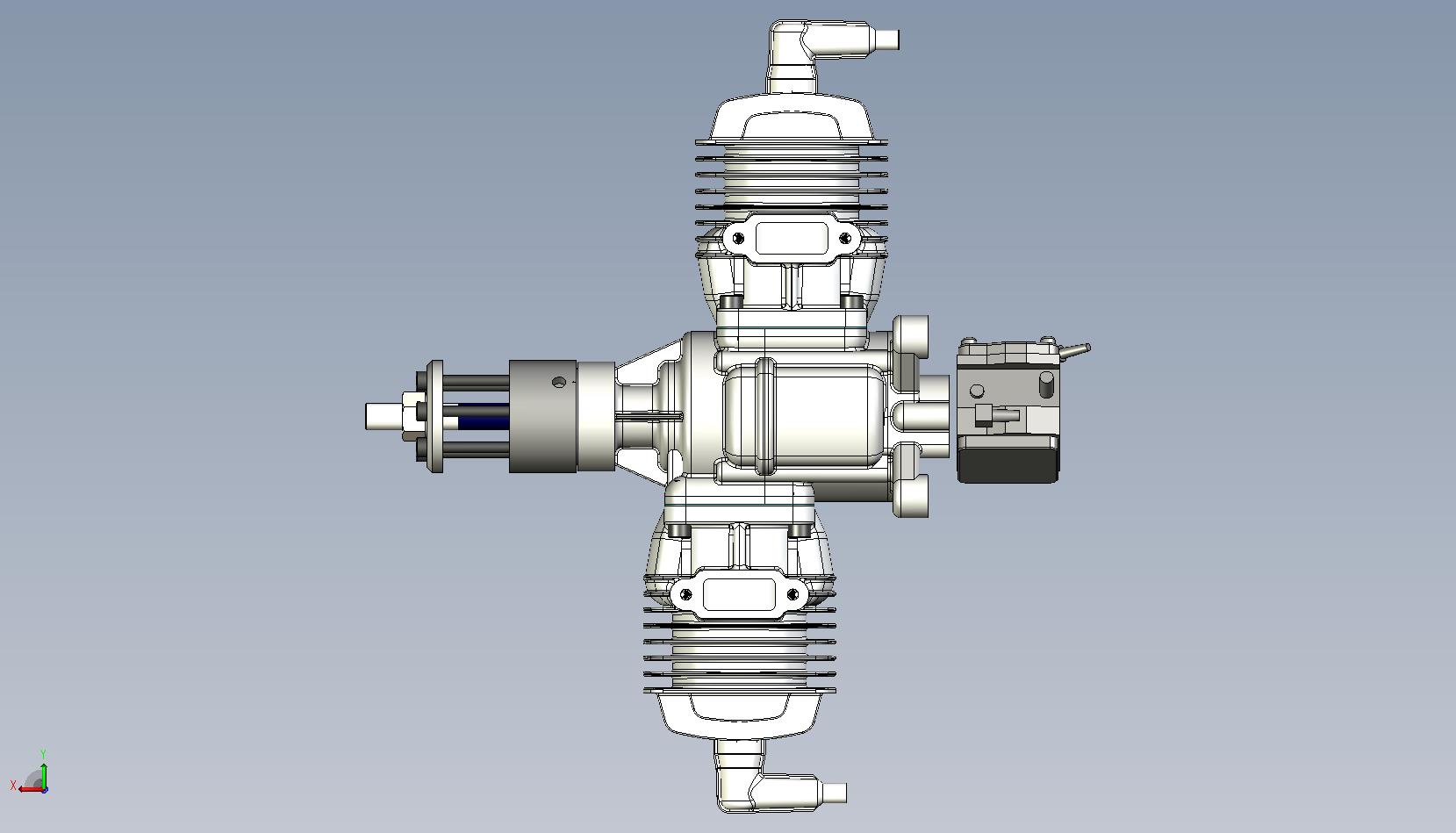

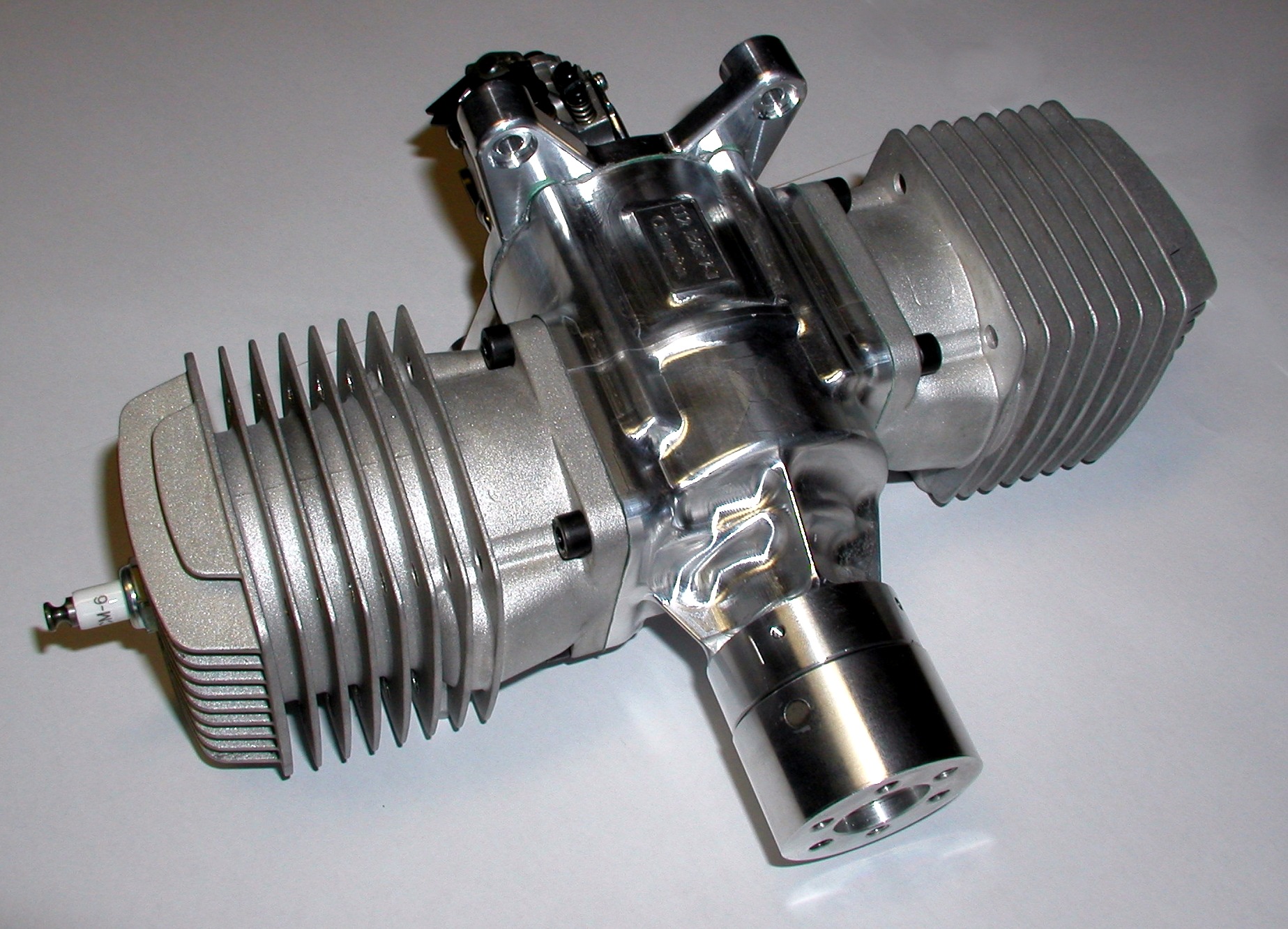

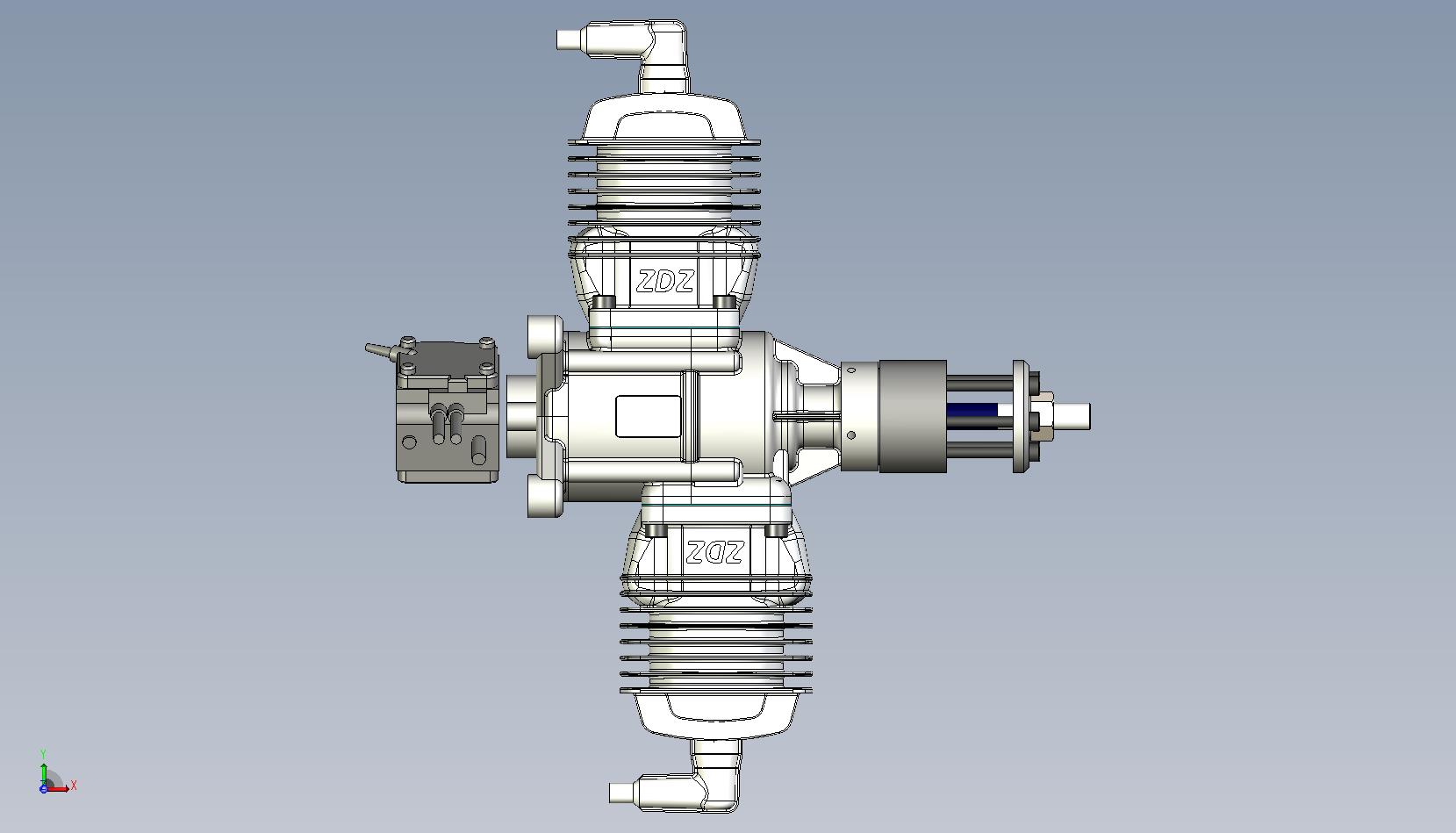

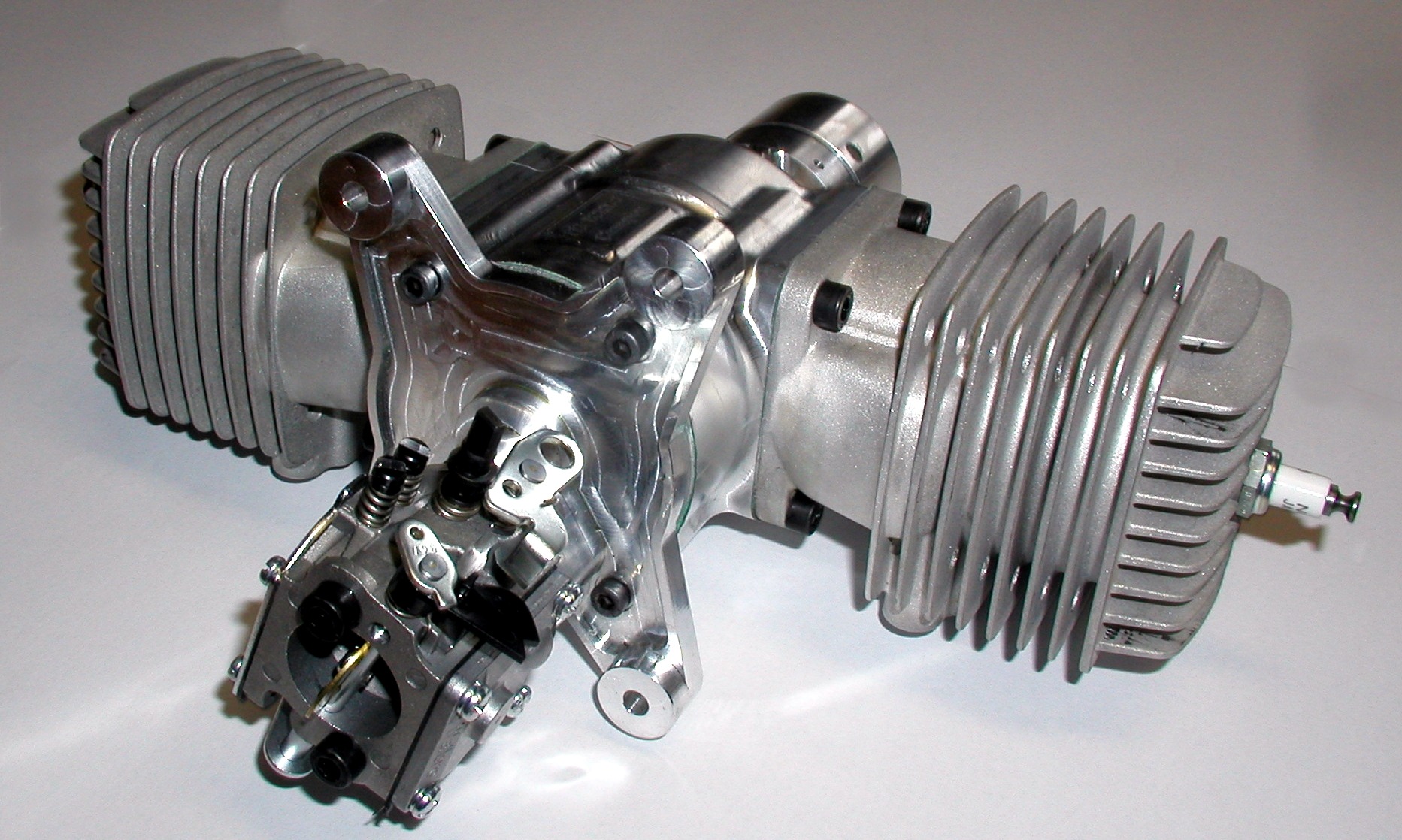

ZDZ 112B2RV-J Champion
Already well known for its smooth run and awesome power to weight ratio two stroke 112ccm opposed twincylinder model gas engine with procesor controlled ignition. Now fully CNC made crankcase and backplate out of 7075 aluminium alloy. Weight increased compared to former 112B2RV-J is only 50 grams.
Engine is based on well proven very powerfull "RV-J" concept. It brings awesome power, superlightweight and same time very durable and reliable powerhouse. Its run and very fast transitions are superior smooth with lowest level of vibrations you could imagine.
Fuel intake of this engine is managed by rotary valve which contrary to the usual reed valve system allows much more precise controll over the timing and same time brings much longer lifetime without need to change reed valves.
PLEASE NOTE, that you have to view this file in Acrobat reader application not in integrated browser PDF viewer.
| Displacement: | 112ccm |
| Weight: | 2250g |
| Bore: | 45mm |
| Stroke: | 35mm |
| RPM range: | 1000-8500ot/min |
| Ignition: | Processor. controlled 4,8-7V |
| Fuel mixture N95+rec.oil: | 1:35 |
| Recomm twinblade props: | 26x14, 27x12, 28x10, 28x12 |
| Recomm. threeblade props: | 26x12,27x10-12 |

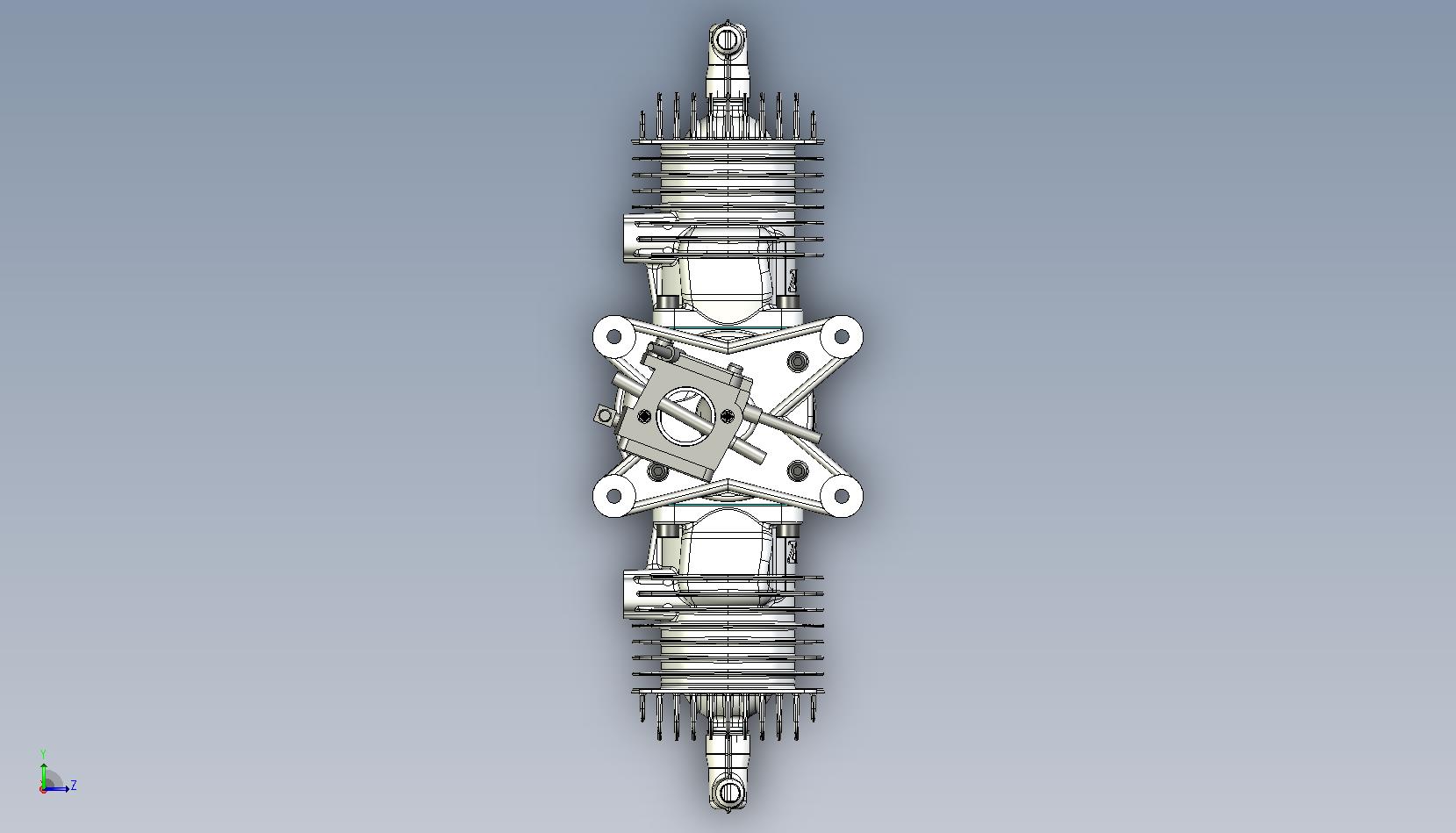

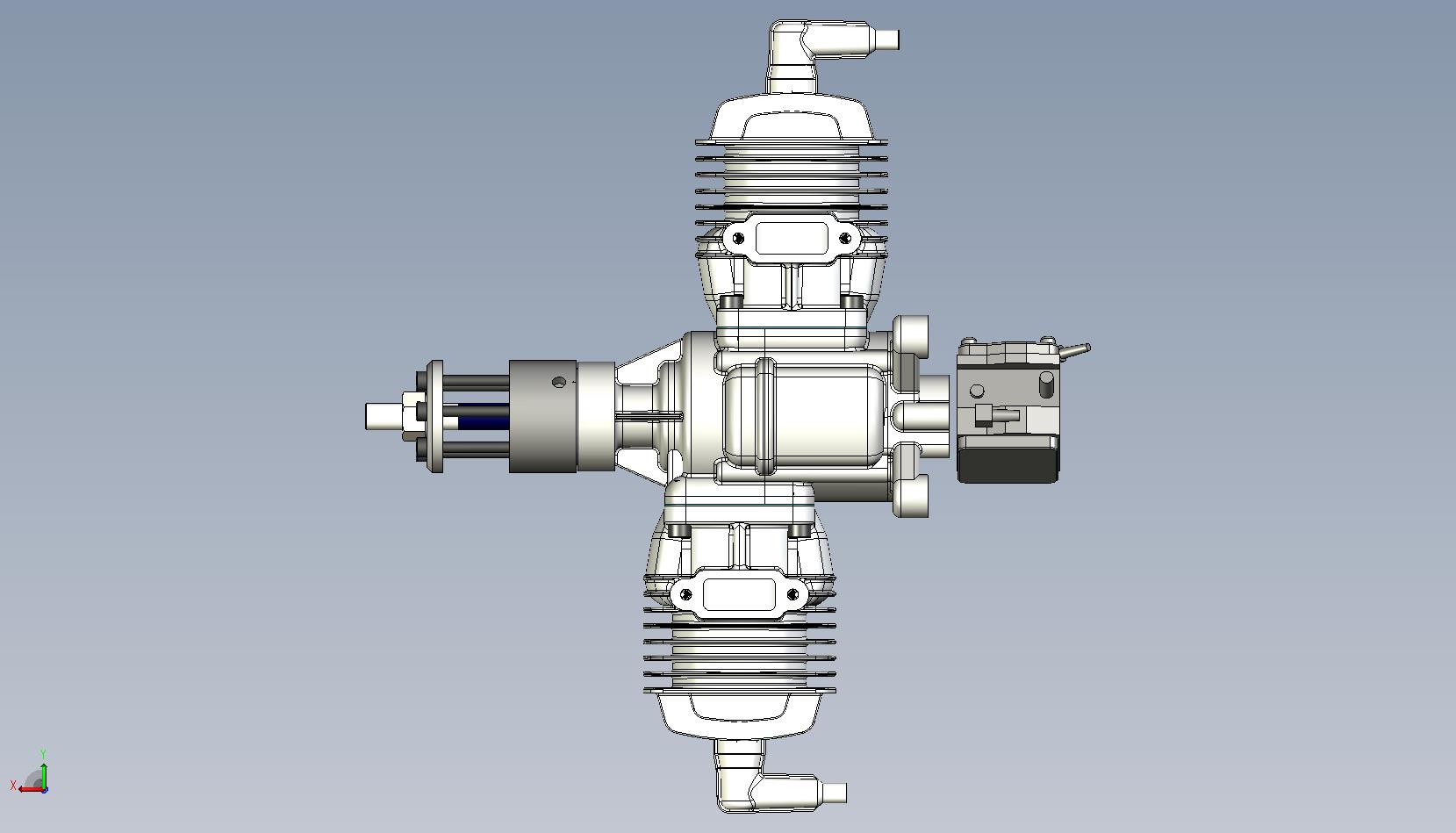

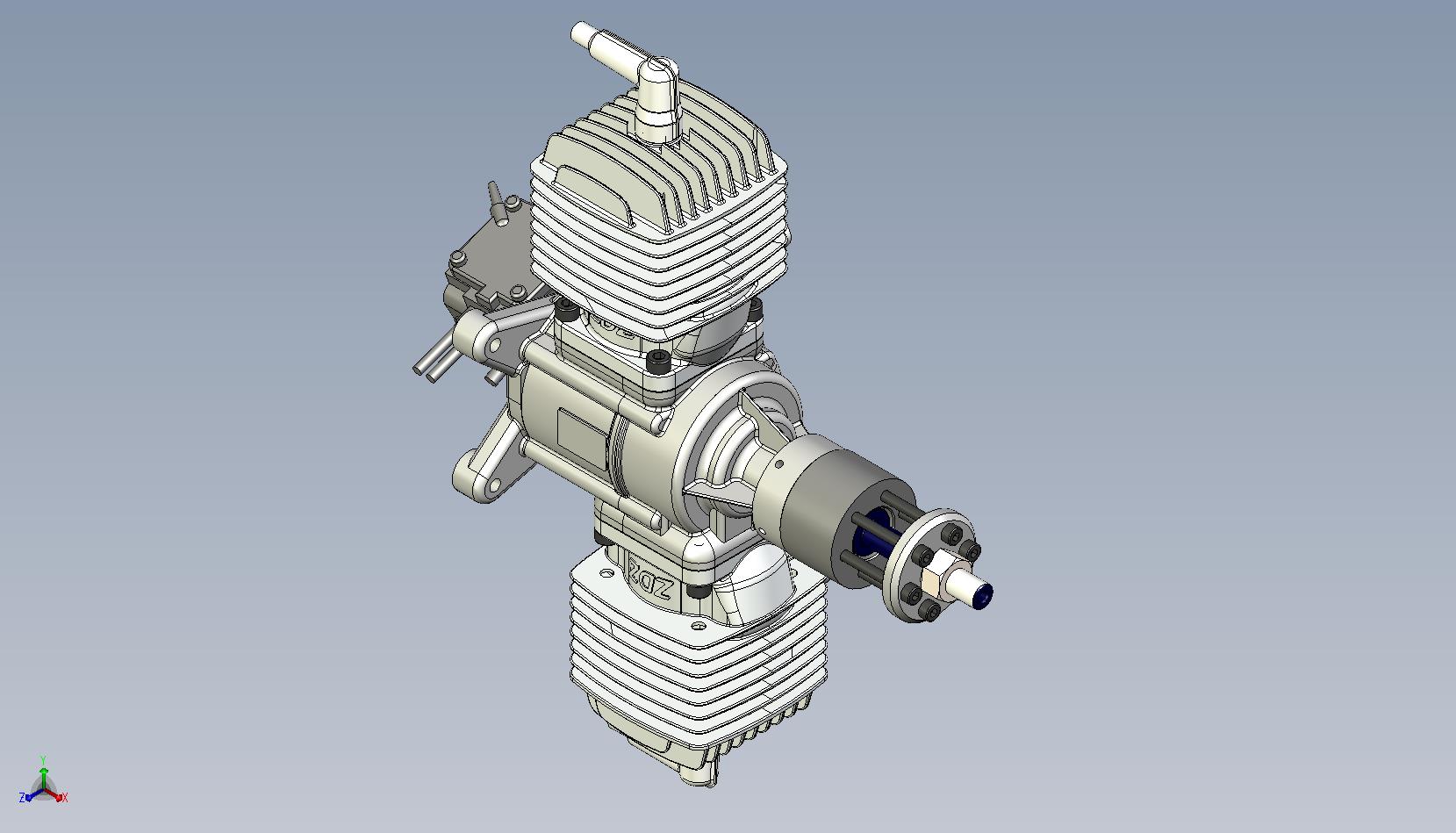

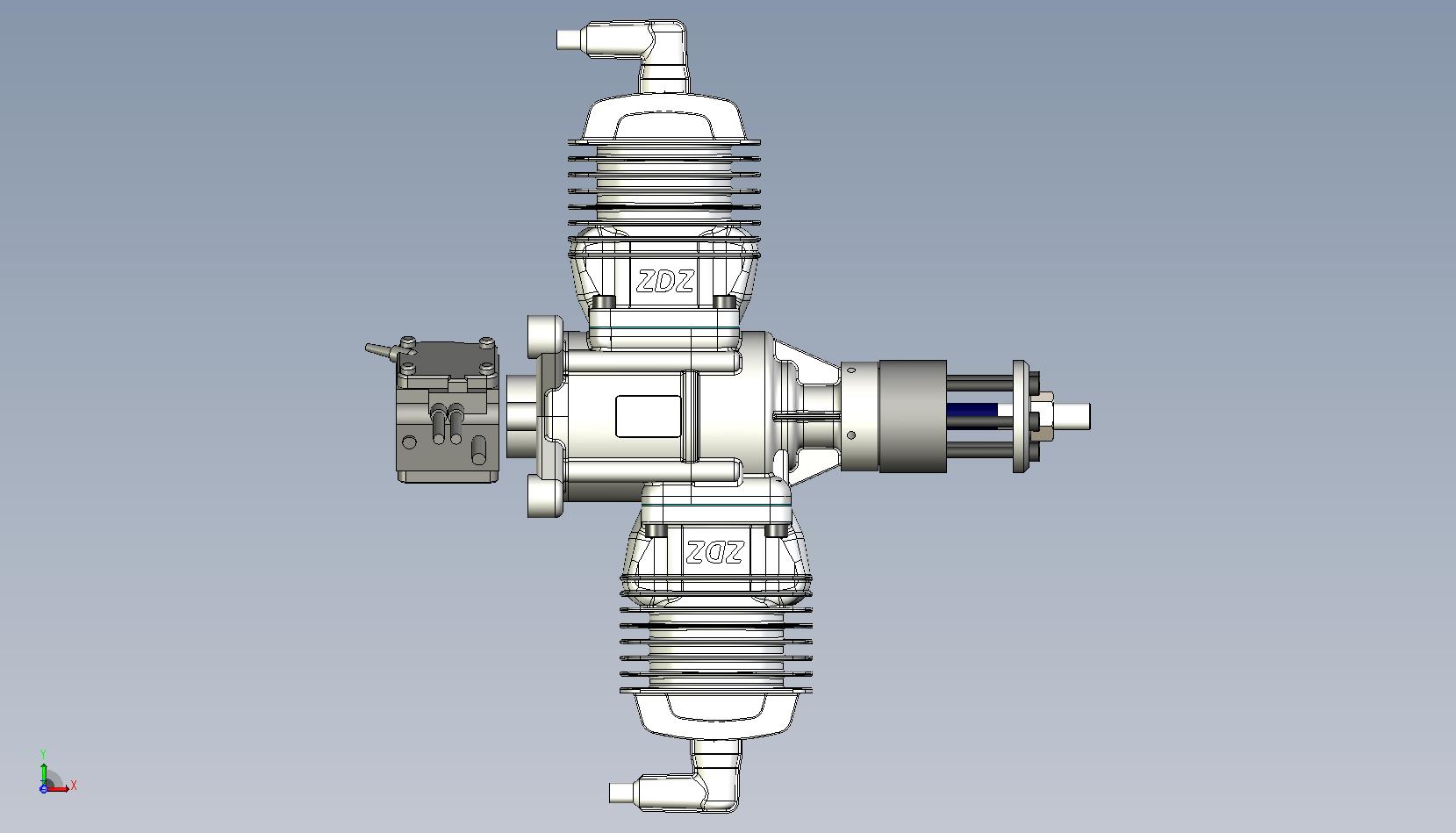

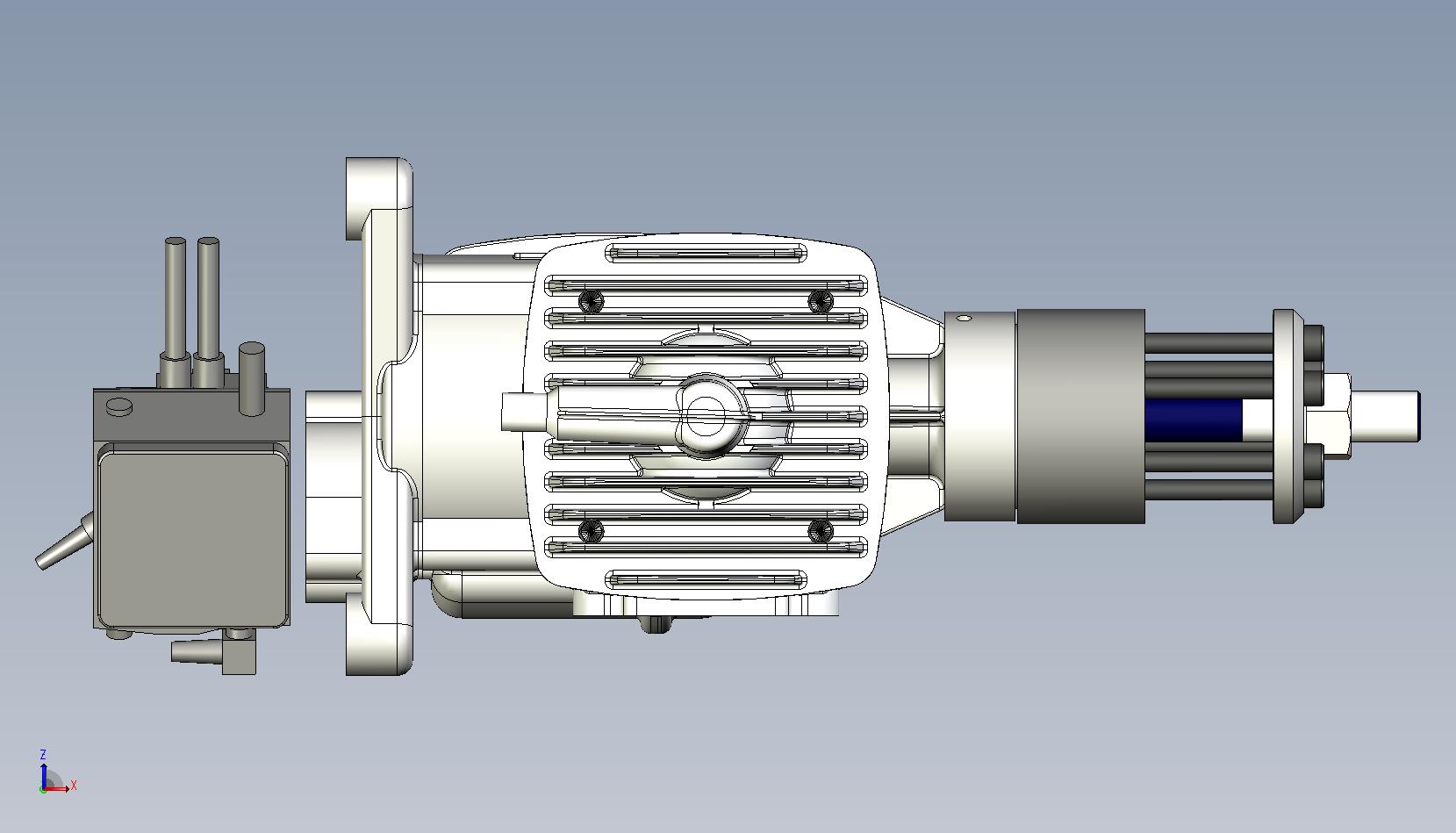

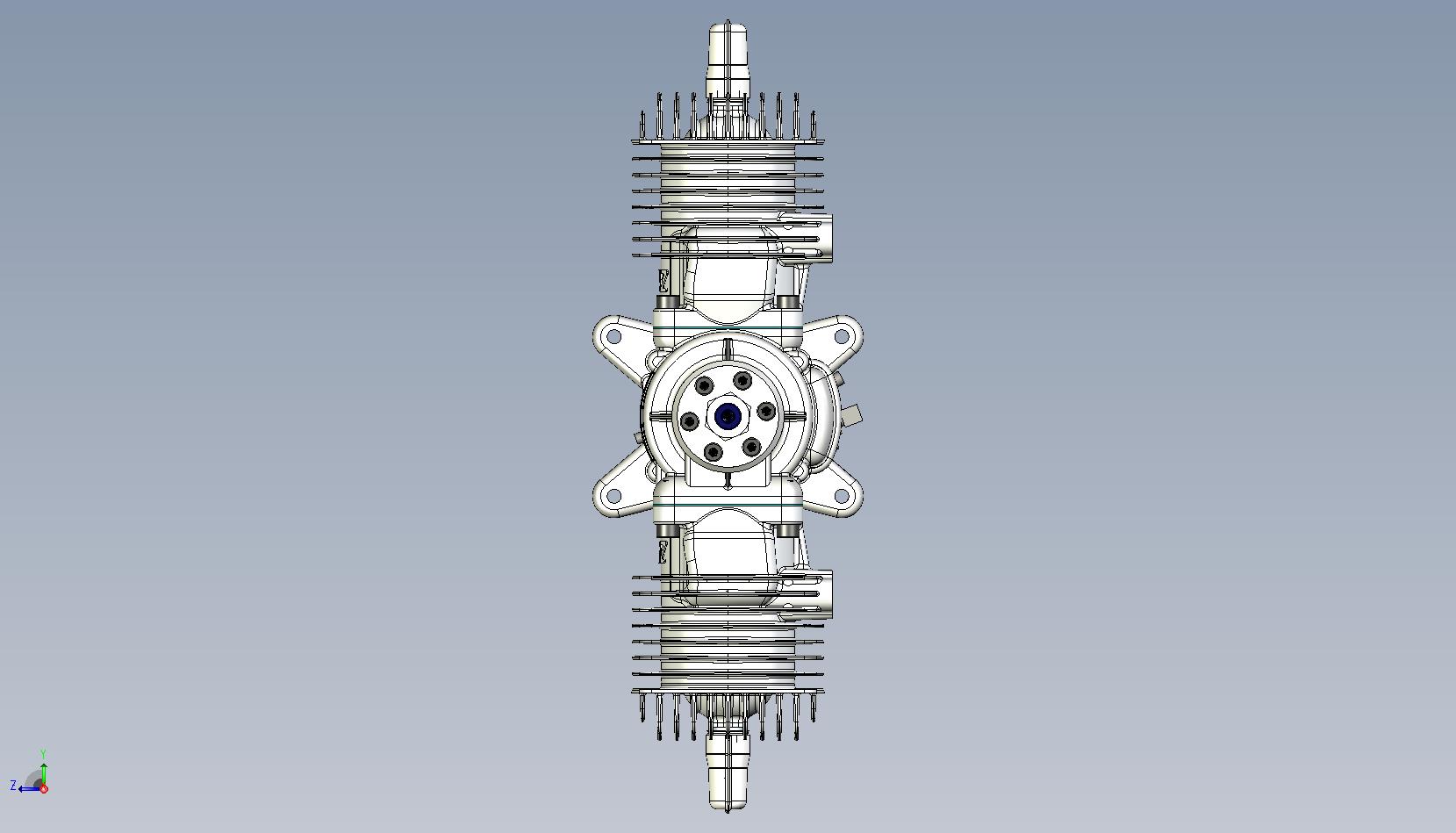

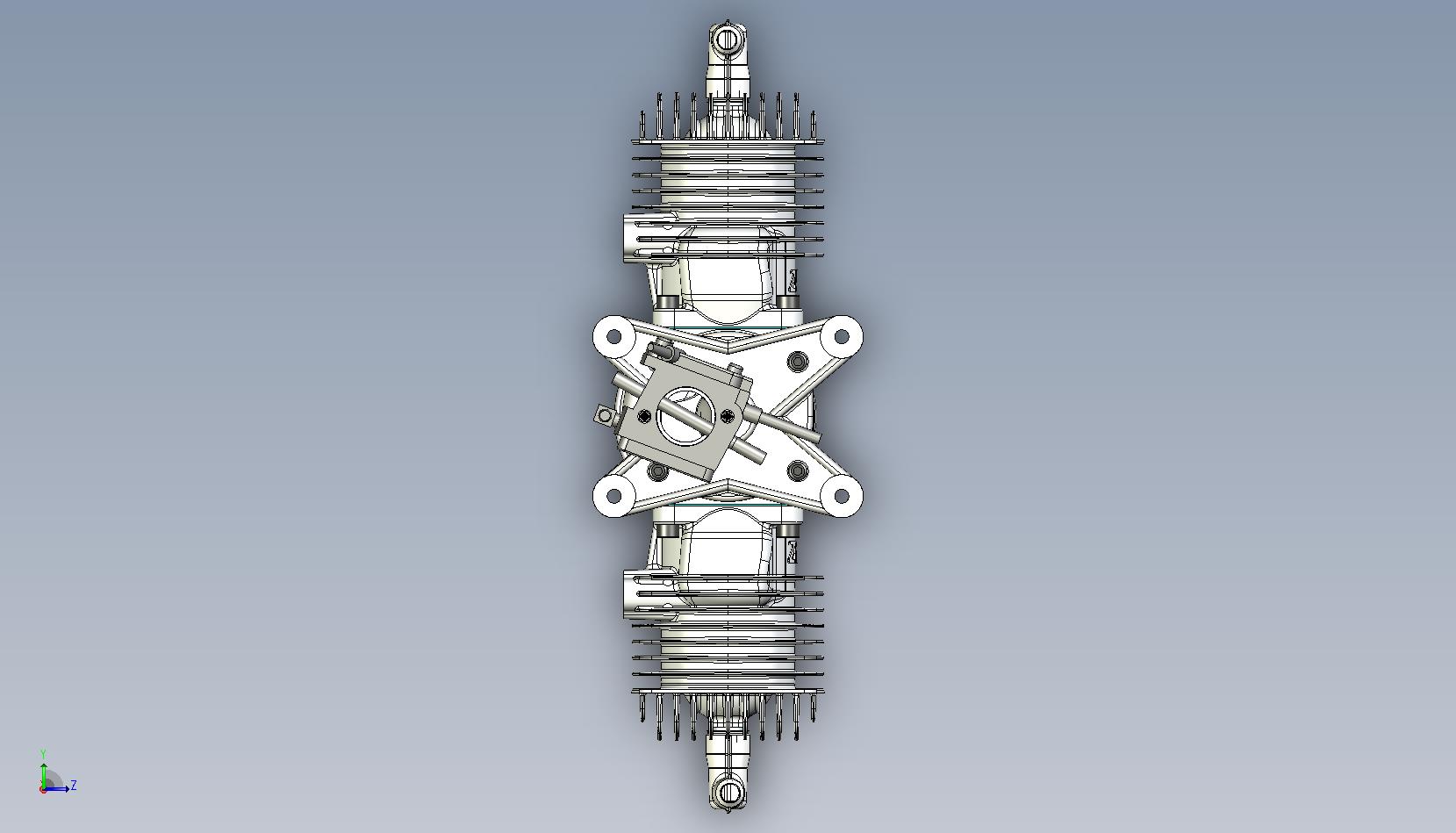

Installation dimmensions in PDF file
